ADU Layout Ideas: Smart Space Planning & Room Arrangements

When planning an ADU layout, every square foot matters. The right layout can make a 400 sq ft space feel spacious, while a poor layout makes even 800 sq ft feel cramped.

Here are proven layout concepts that maximize both livability and rental appeal.

Studio ADU Layouts (250-500 sq ft)

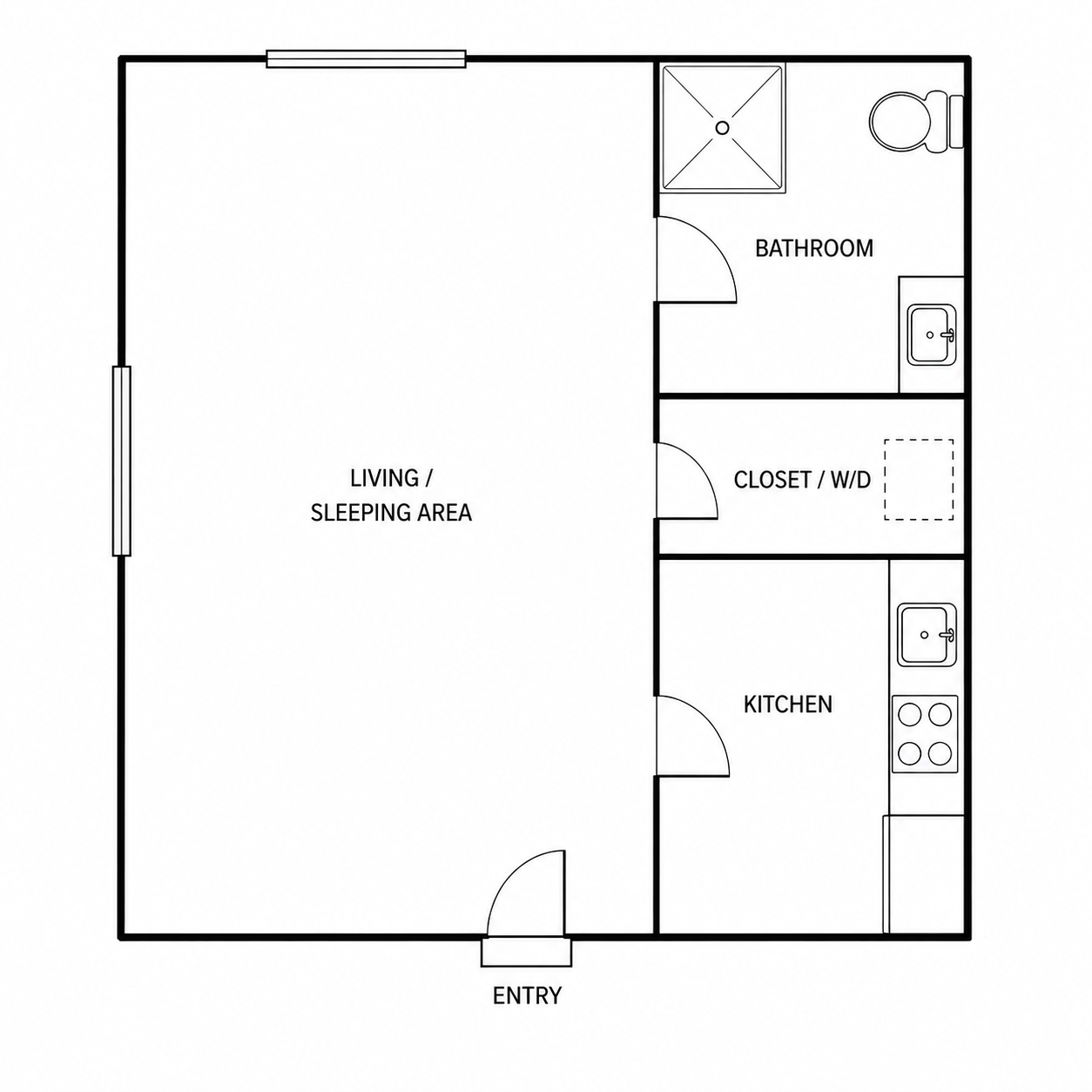

The Minimalist Studio (350-450 sq ft)

Perfect for urban markets where small studios rent well:

Key Features:

• Open living/sleeping area (220-280 sq ft)
• Galley kitchen with full appliances (60-80 sq ft)
• Full bathroom with shower (40-50 sq ft)
• Closet/washer-dryer combo space (30-40 sq ft)
• Efficient layout maximizes every square foot

Best for: Single professionals, students, or as guest quarters

The Extended Studio (400-500 sq ft)

More comfortable for long-term living:

┌─────────────────────────────────────┐
│           LIVING AREA               │
│                                     │
│  ┌─────────┐    SLEEP    ┌──────┐   │
│  │         │    AREA     │      │   │
│  │ KITCHEN │             │ BATH │   │
│  │         │             │      │   │
│  └─────────┘             └──────┘   │
│                                     │
│     ENTRY ←                         │
└─────────────────────────────────────┘

Key Features:

• Defined sleeping alcove or area (100-120 sq ft)
• L-shaped or U-shaped kitchen (80-100 sq ft)
• Generous living space (180-220 sq ft)
• Room for dining table and workspace

Best for: Young professionals, downsizers who want single-level living

1-Bedroom ADU Layouts (500-800 sq ft)

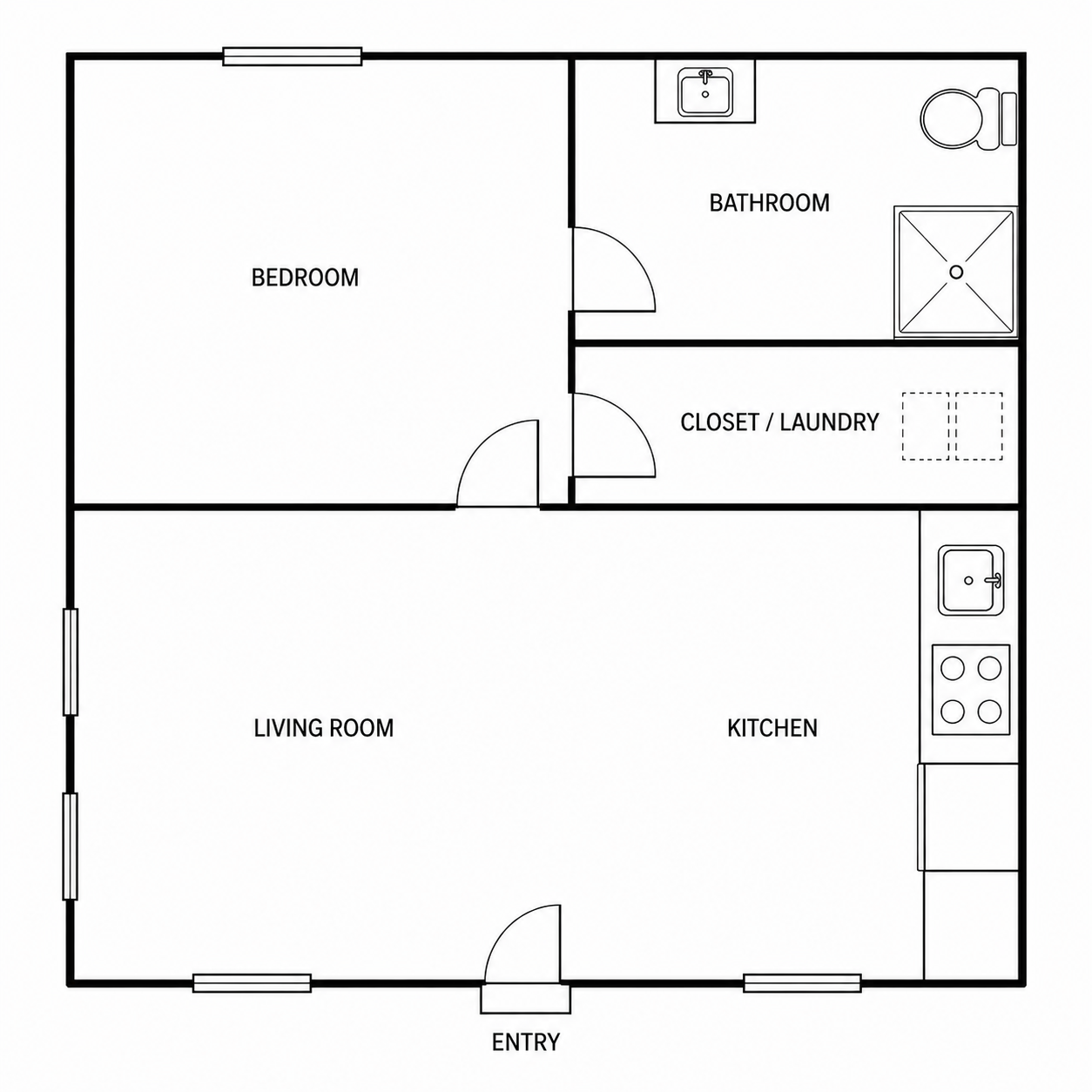

The Compact 1-Bedroom (500-600 sq ft)

Maximum privacy in minimal space:

Key Features:

• True bedroom with door (120-140 sq ft)
• Combined living/dining area (200-240 sq ft)
• Efficient galley kitchen (80-100 sq ft)
• Full bathroom (40-50 sq ft)
• Closet/laundry space (30-40 sq ft)

Best for: Couples, single parents, or maximum rental income

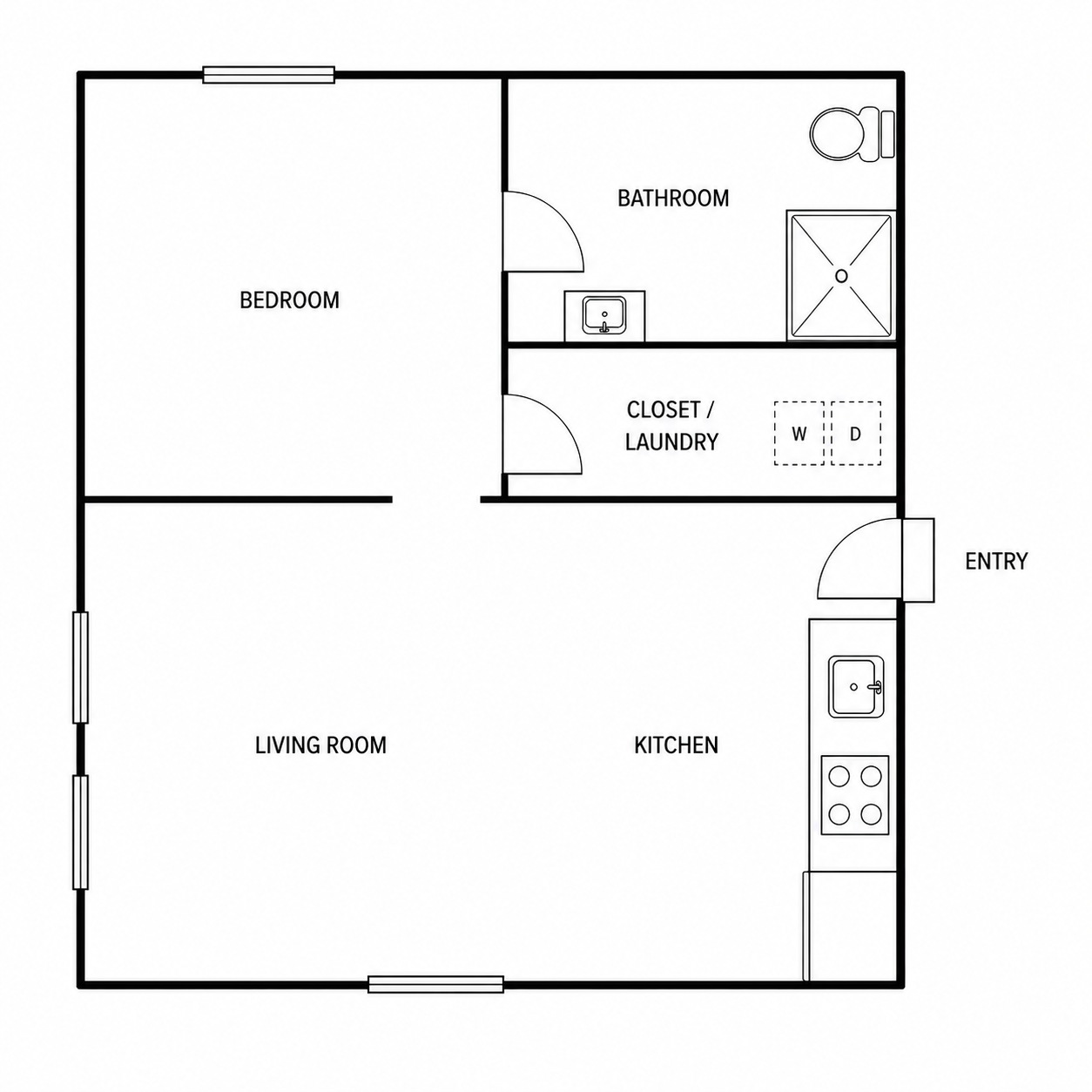

The Spacious 1-Bedroom with Laundry (600-750 sq ft)

Room to breathe with convenient laundry facilities:

Key Features:

• Large bedroom with privacy (140-160 sq ft)
• Spacious living room for entertaining (180-220 sq ft)
• Full-size kitchen with ample counter space (90-110 sq ft)
• Full bathroom with quality fixtures (45-55 sq ft)
• Dedicated closet/laundry room with W/D hookups (40-50 sq ft)

Best for: Families, professionals working from home, higher-end rentals

2-Bedroom ADU Layouts (800-1200 sq ft)

The Split Layout (800-900 sq ft)

Bedrooms on opposite sides for maximum privacy:

Key Features:

• Two equal-sized bedrooms (12' x 10' each, ~120 sq ft)
• Central living room for shared space (12' x 14', ~168 sq ft)
• Separate dining room (10' x 10', ~100 sq ft)
• Full kitchen with ample counter space (14' x 10', ~140 sq ft)
• Two full bathrooms for convenience
• Laundry/utility closet centrally located
• Individual closets for each bedroom

Best for: Roommates, small families, maximum rental yield

Layout Optimization Tips

Maximize Natural Light

• Place living areas along south-facing walls
• Use glass doors to patios/yards when possible
• Consider skylights in bathrooms and kitchens
• Avoid placing tall furniture against windows

Create Storage Solutions

• Built-in storage under stairs
• Floor-to-ceiling closets in bedrooms
• Kitchen pantry or storage nook
• Outdoor storage for bikes, tools

Ensure Privacy

• Avoid direct sightlines from entry to bedrooms
• Use frosted glass or screens for separation
• Position windows to avoid overlooking neighbors
• Create acoustic separation between units

Optimize Traffic Flow

• Keep hallways to minimum width (36" where possible)
• Create clear path from entry to living areas
• Avoid dead-end spaces
• Ensure furniture can fit through doorways

Common Layout Mistakes to Avoid

1. Oversized bathrooms - 40-50 sq ft is sufficient for most ADUs
2. Wasted hallway space - Every sq ft should serve multiple purposes
3. Poor kitchen placement - Keep it central but not blocking living areas
4. Insufficient storage - Plan for seasonal items, cleaning supplies
5. No outdoor access - Even a small patio increases livability

Choosing the Right Layout

Consider these factors when selecting your ADU layout:

Lot constraints:

• Setback requirements
• Utility locations
• Existing landscaping
• Privacy from main house

Rental market:

• Studio vs 1-bedroom demand in your area
• Target tenant demographics
• Comparable rents for different layouts

Your needs:

• Guest use vs rental income
• Accessibility requirements
• Future family changes

The best ADU layout balances your specific site constraints with proven design principles that maximize both livability and rental appeal.
